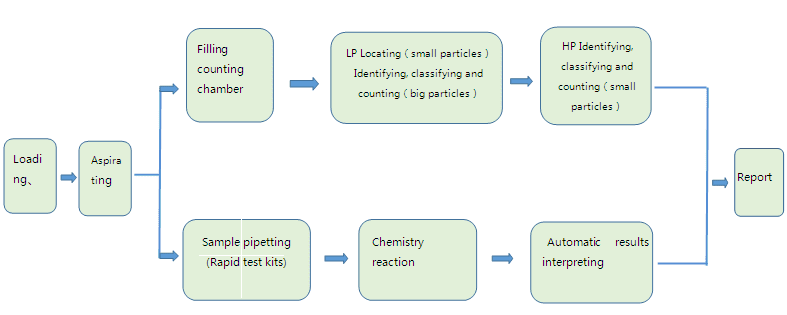

Instrument Work Flow

Parameters Detected

Microscopy Measurement

• RBC, WBC, Epithelial Cells, Clue Cells, Trichomonas Vaginalis, Bacteria, Fungus, Cleanliness,Bacterial Density and Diversity, Dominant Bacteria, Pathogenic Microorganisms, Nugent score, AV score, etc.

Chemistry Measurement

• pH：An important indicator reflecting the micro-ecologicalbalance of vaginal
• H2O2：Used to assess the quantity of dominant lactobacillus for maintaining vaginal micro-ecological balance
• Leukocyte Esterase（LE）：Inflammatory response markerreflecting the quantity of WBC in vaginal secretions.
• Alkaline Phosphatase（ALP）：Positive results indicate vaginal inflammation.
• Neuraminidase（SNa）：Secreted by gardnerella vaginalis and some anaerobic bacteria.It’san indicator of pathogenic bacteria, positive results indicate bacterial vaginosis.
• β-Glucuronidase（β-G）：An enzyme secreted by aerobic bacteria, positive results indicate aerobic vaginitis
• Proline Aminopeptidase（PLD）：Positive results indicate colpomycosis or anaerobic vaginitis
• Acetylglucosaminidase（NAG）：An specific enzyme secreted by fungi and trichomoniasis, together with reference to pH, fungal vaginitis（pH<4.5）and trichomonas vaginitis（pH>5.0）can be indicated.
• Coagulase（CG）：An enzyme synthesized and secreted by aerobic bacteria,of which positive results indicate aerobic vaginitis

Work Principle

• Microscopy Measurement: Machine Vision Technology is applied to scan and capture full-view field images of formed elements in secretionssamples, and thenidentify, classifyand count them automatically
• Chemistry Measurement: Images of colorations from rapid test kits reacted with samples are captured and automatically interpreted

Product Features

Integrated

•  Unique design of integration, chemistry measurement and microscopy measurement can be done by one stop sampling with easier operation and more precise results.

Multifunctional

•  Measurement modes optional: chemistry or microscopy alone or chemistry and microscopy together

More results

•  Chemistry and Microscopy measurements done together makescomprehensive score of vaginal micro-ecological environment, improvesthe rate of clinical diagnosis, confirm the type of vaginitis by one stop and guide the clinical treatments.

Chemistry Measurement

•  Automatic incubation and results interpretation effectively avoid the possibility of human interference.
•  Flexibleoptions of rapid test kits in accordance with clinical purpose.

Microscopy Measurement

•  Full-view field scanning and automated locating under LP, and automated tracking, identifying, classifying and counting of particles under HP to increase positive detection rate
•  Comprehensive report with both full-view field and segmented images, on-screen verification of suspicious particles and no manual microscopic review required.
• Accuracy of automatic identification can be continuously improved by software upgrading
