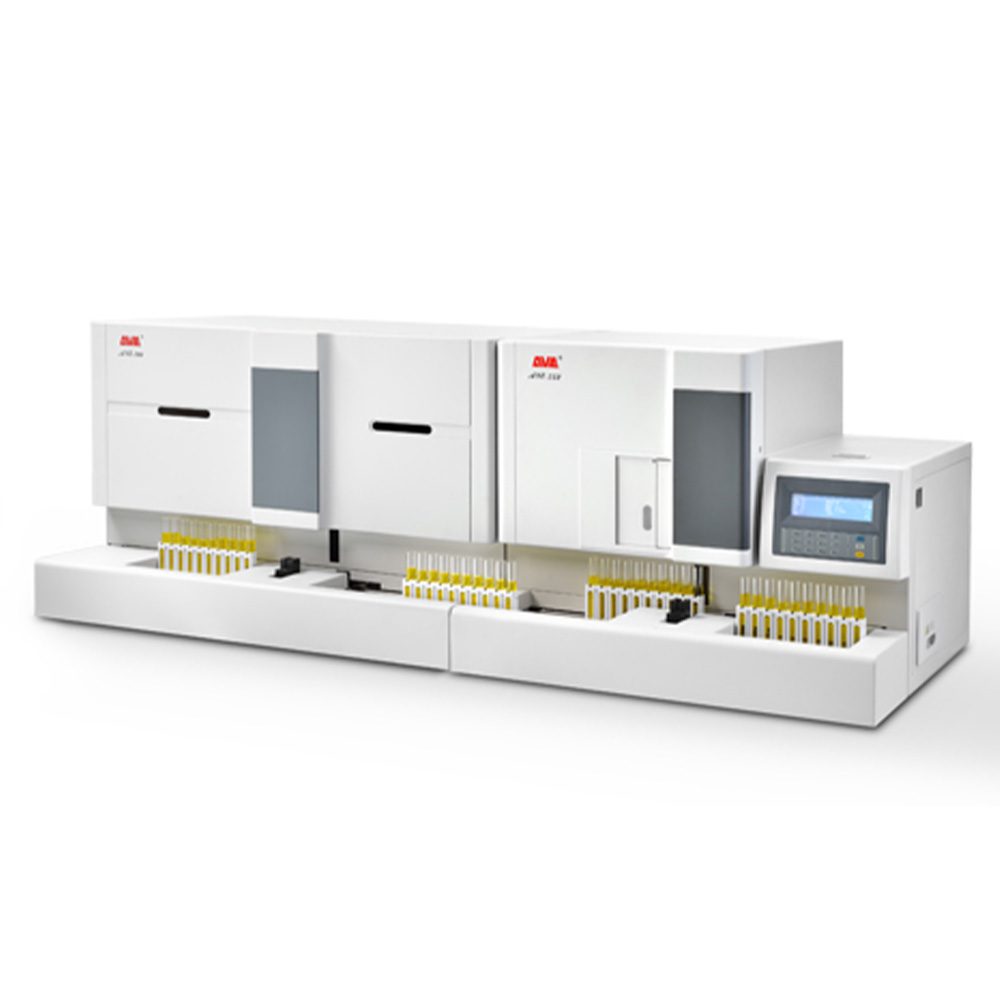

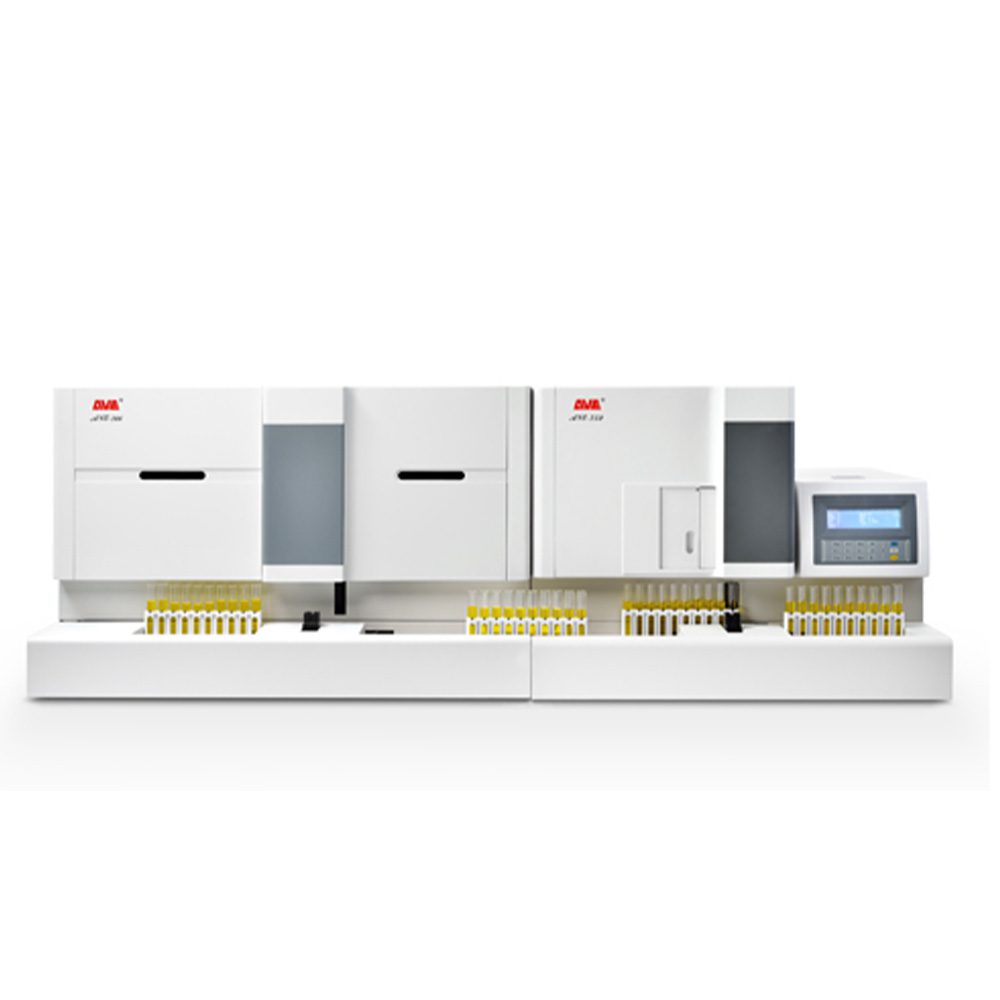

AVE-752 Fully Automated Urine Analyzer
Contact us for pricing
CE Marked；Compatible with AVE-763 sereis,764 series, and 766 Automated Urine Formed Elements Analyzer and customized for laboratories at all levels of hospitals.
Parameters Detected
Work Principle
Reflectance Photometer
Product Features
Fast, reliable and cost-effective
Innovative cassette strip loading system
Unique sample sprinkling technology to avoid un-detection and interference
Separate module for measuring urine physical parameters
Automatic quality control analysis and self-check
Optimized all-round washing technology to prevent cross contamination
Unidirectional or bidirectional interface with LIS/HIS
Software and language upgrades by USB stick.
*available soon
Evaluated parameters: Bilirubin (BIL), Urobilinogen (URO), Ketones (KET), Ascorbic acid (AsA), Glucose (GLU), Protein (PRO), Blood (BLD), pH (PH), Nitrite (NIT), Leukocytes (LEU), Specific gravity (S.G.), Microalbumin (ALB)*, Creatinine (CRE)*, Calcium (Ca)*
| Memory Capacity | Min. 20,000 results |
|---|---|
| Test Strips adding capacity | 200 strips |
| Throughput | 100~240tests / hour |
| Min. Sample volume | 2.0 ml |
| Max. Sample loading number | 6 racks of 10 tubes |
| Built-in Barcode reader | Yes |
| Printer | Laser, external, optional |
| Interfaces | USB, RS232, LAN |
| Dimensions (main unit) | 680 x 650 x 545mm (L x D x H) |
| Weight (main unit) | 53kg |
| Power (main unit) | 100-240V~50/60Hz, 300VA |
*available soon
