Auto Chemistry Analyzer BK-600
Contact us for pricing
Introduction:
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.

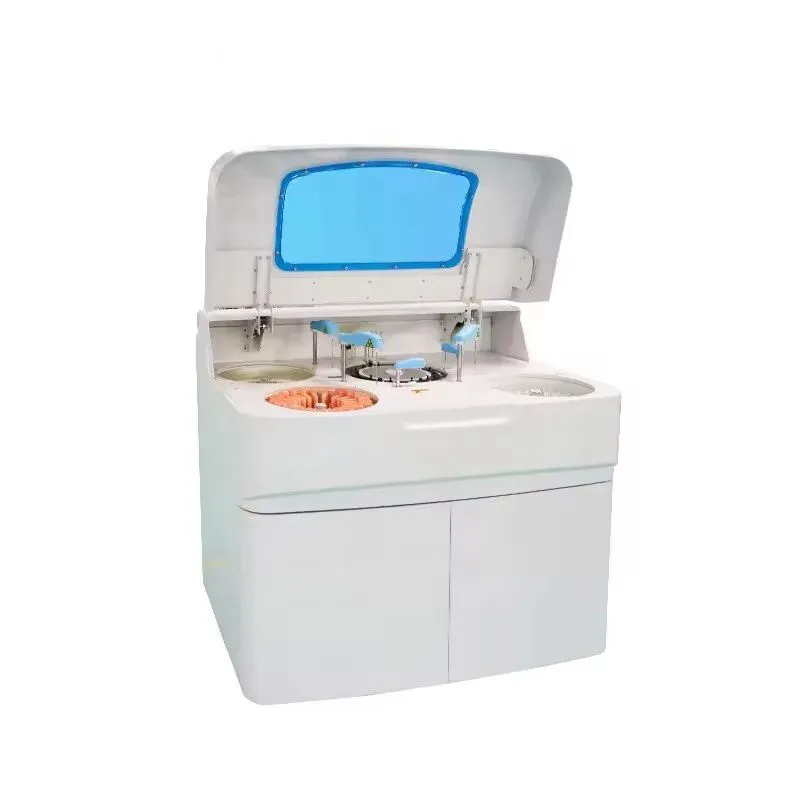

BK-600 Auto Chemistry Analyzer
Features:
1. 600 tests per hour.
2. 120 reaction cuvettes.
3. 180 refrigerated reagent positions.
4. Built-insample barcode system optional.
5. 90 sample positions(120 sample positions optional).
6. Probe with anti-collision function, liquid level detection function.
Technical Parameters:
| Model | BK-600 | |
|---|---|---|
| Overall Performance | Throughput | 600 tests/hour |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certification | CE, FDA, ISO9001, ISO13485 | |
| Sample&Reagent System | Sample Positions | 90 sample positions, built-in barcode system available |
| Reagent Positions | 180 refrigerated reagent positions(R1: 90 & R2: 90) | |
| Sample Volume | 1~70μl | |
| Reagent Volume | 10~350μl | |
| Probe | Teflon coating, with anti-collision function, liquid level detection functio | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | 2~8℃ | |
| Reaction System | Temperature Control | 37±0.1℃, real-time monitoring |
| Cuvettes | 120 reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT Function | YES | |
| Optical System | Light Source | 12V/20W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm | |
| Absorbance | 0~3.5Abs | |
| Calibration&QC | Calibration | 1-point, 2-point and multipoint, factor, Spline, Logit-4P, Logit-5P, Polygon |
| Quality Control | Inserting quality control at random | |
| Data Management | Software | Windows 7/8/10 |
| LIS System | Available | |
| Interface | TCP/IP network interface | |
| Printer | External optional, multiple reporting mode available | |
| Working Conditions | Power Supply | AC220V±10%, 50/60Hz 110V±10%, 60Hz, 800VA |
| Temperature | 15~30℃ | |
| Water Consumption | Deionized water: 20L/H | |
| Humidity | 40%~85% | |
| Size&Weight | External Size (W*D*H) | 1170*775*1145mm |
| Net Weight | 216kg | |
| Package Size (W*D*H) | 1358*938*1387mm | |
| Gross Weight | 281kg | |
| Accessory Package Size | 550*430*860mm | |
| Accessory Gross Weight | 20kg | |

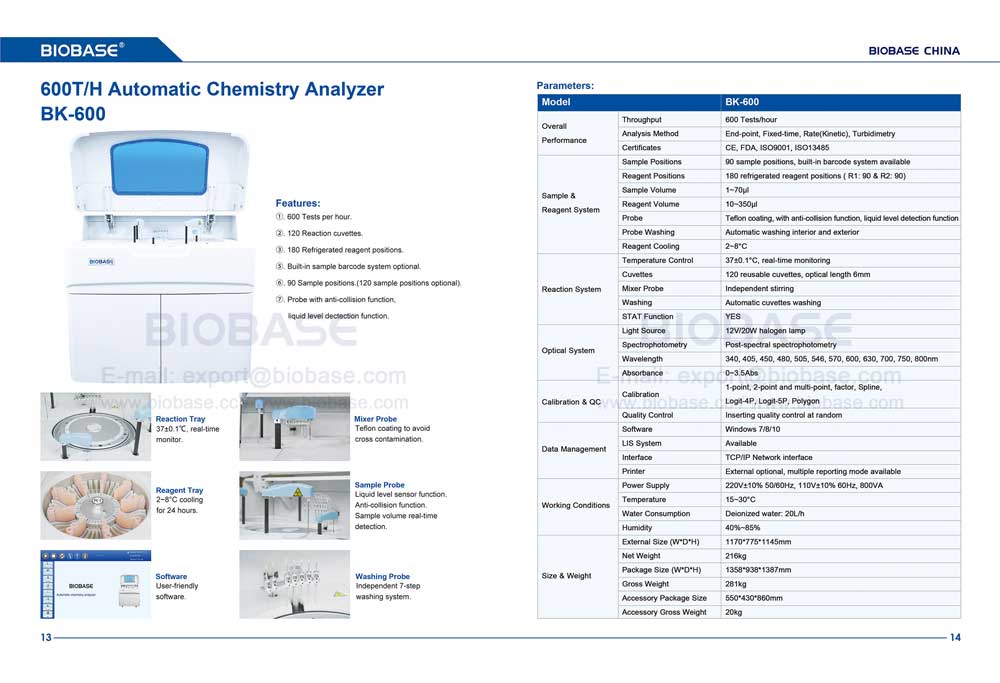

Brochures
