Auto ELISA Processor BIOBASE2000
Contact us for pricing
Introduction:
The auto elisa processor is an analytical instrument used in the field of hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.

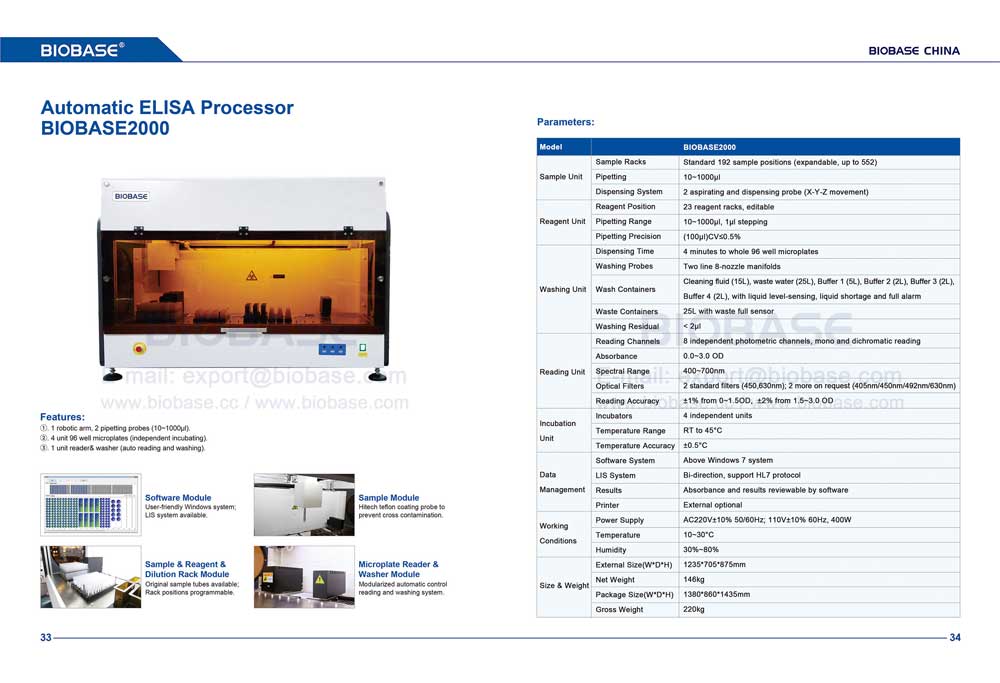

Auto ELISA Processor (BIOBASE2000)
Features:
1. 1 robotic arm, 2 pipetting probes(10~1000μl).
2. 4 units 96 well microplates(independent incubating).
3. 1 unit reader&washer(auto reading and washing).
Technical Parameters:
| Model | BIOBASE2000 | |
|---|---|---|
| Sample Unit | Sample Racks | Standard 192 sample positions(expandable, up to 552) |
| Pipetting | 10~1000μl | |
| Dispensing System | 2 aspirating and dispensing probe( X-Y-Z movement) | |
| Reagent Unit | Reagent Position | 23 reagent racks, editable |
| Pipetting Range | 10~1000μl, 1μl stepping | |
| Pipetting Precision | (100μl)CV≤0.5% | |
| Washing Unit | Dispensing Time | 4 minutes to whole 96 to microplates |
| Washing Probes | Two line 8-nozzle manifolds | |
| Wash Containers | Cleaning fluid(15L), waste water(25L), Buffer 1(5L), Buffer 2(2L), Buffer 3(2L), Buffer 4(2L), with liquid level-sensing, liquid shortage and full alarm |
|
| Waste Containers | 25L with waste full sensor | |
| Washing Residual | <2μl | |
| Reading Unit | Reading Channels | 8 independent photometric channels, mono anddichromatic reading |
| Absorbance | 0.0~3.0OD | |
| Spectral Range | 400~700nm | |
| Optical Filters | 2 standard filters(450, 630nm); 2 more on request (405nm/450nm/492nm/630nm) | |
| Reading Accuracy | ±1% from 0~1.5OD, ±2% from 1.5~3.0OD | |
| Incubation Unit | Incubators | 4 independent units |
| Temperature Range | RT to 45℃ | |
| Temperature Accuracy | ±0.5℃ | |
| Data Management | Software System | Above Windows 7 system |
| LIS System | Bi-direction, support HL7 protocol | |
| Results | Absorbance and results reviewable by software | |
| Printer | External optional | |
| Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W |
| Temperature | 10~30℃ | |
| Humidity | 30%~80% | |
| Size&Weight | External Size (W*D*H) | 1235*705*875mm |
| Net Weight | 146kg | |
| Package Size (W*D*H) | 1380*860*1435mm | |
| Gross Weight | 220kg | |
